Cadillac® CU-TE Compact Ultrasonic Flow Meter
The Cadillac® Ultrasonic Flow Meters are rate and totalizing meters which are capable of measuring liquids, of all types, non-intrusively.

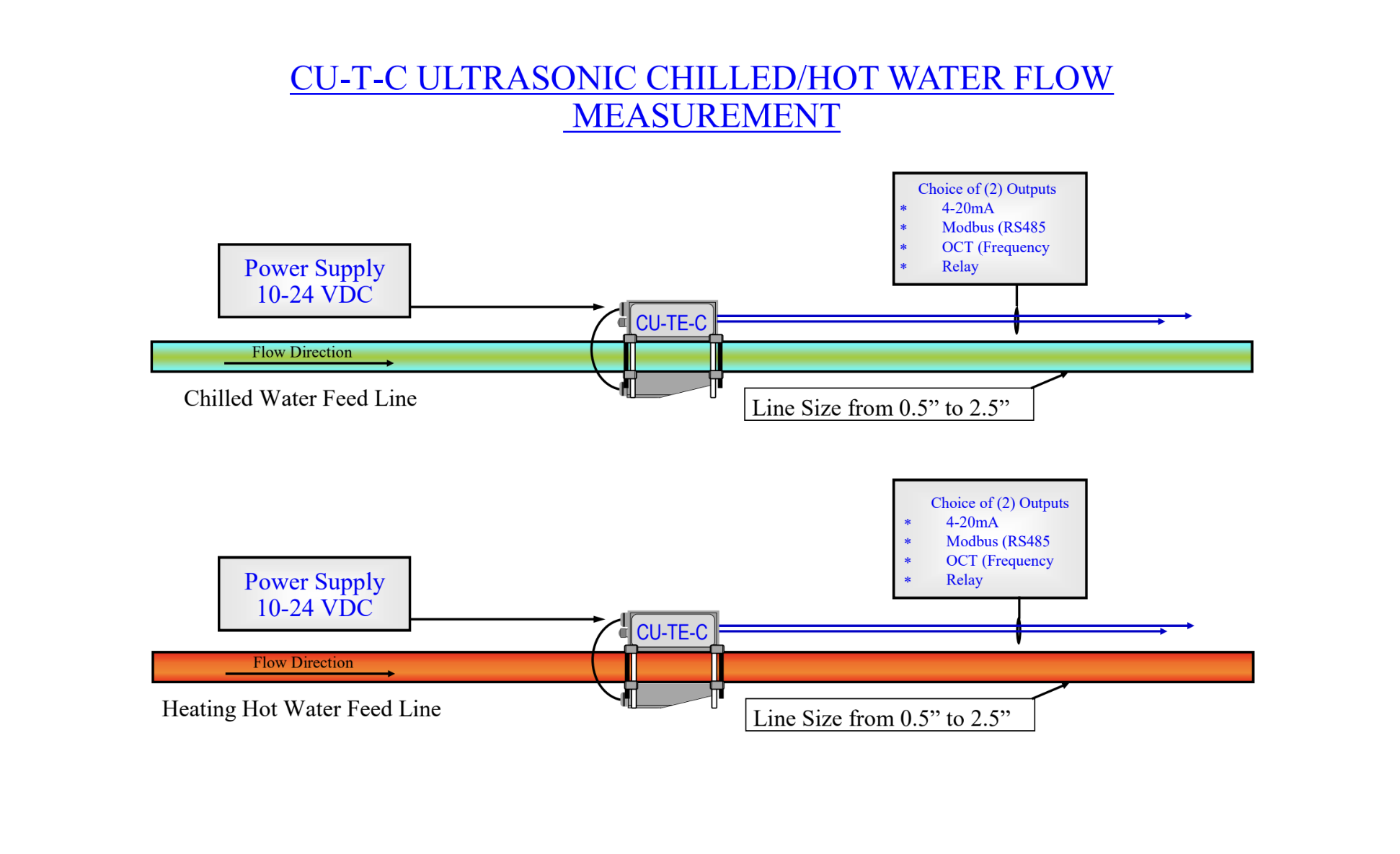

The Cadillac® Ultrasonic Flow Meters are rate and totalizing meters which are capable of measuring liquids, of all types, non-intrusively. Due to the CT-TE Compact design size (0.5” to 2.5”), it is particularly suitable as a low cost solution for Hot and Chilled water measurements.
Integrating Digital Processing (DSP) with advanced correlation detection methods, the flow meter features exceptional performance and flexibility. Combining ease of installation (non-intrusive pipe clamp-on), high accuracy, no moving parts, reliability, low maintenance, rangeability and no pressure drop, the Cadillac® CU-TE Compact Ultrasonic flow meter have become the fastest growing liquid flow technology in the world today.
The New Industry Standard
Combining Cadillac®’s CU-TE Compact ultrasonic flow meter with advanced electronics and the low install cost, the CU-TE Ultrasonic Flow Meter is quickly become acknowledged as the industry standard for small line flow measurement. Customers choose the Cadillac® CU-TE Compact because of proven: accuracy, dependability, consistency, maintenance and rangeability.
QUICK CONTACT
DOWNLOADABLE DOCUMENTS
Product Summary
Combining ease of installation (non-intrusive pipe clamp-on), high accuracy, no moving parts, reliability, low maintenance, rangeability and no pressure drop, Cadillac® CU-TE Compact Ultrasonic flow meters have become the fastest growing liquid flow technology in the world today.
APPLICATIONS AND FEATURES
The Cadillac® Ultrasonic Flow Meters are rate and totalizing meters which are capable of measuring liquids, of all types, non-intrusively, including:
- Water
- Oil
- Chemical
The CU-TE Compact Ultrasonic Meter is a clamp on type-small pipe size solution that is compatible with piping materials such as:
- Stainless Steel
- Carbon Steel
- Copper
- Resin Pipe PVC
- Other
With its smaller compact size, the CU-TE is suitable for pipeline sizes between 0.5” to 2.5” (Inner Diameter 0.5” – Inner Diameter 2.56”)
Cadillac® CU-TE Compact Ultrasonic Meter – Features
Key product features are as following:
- Simple installation that only takes a few minutes and a user-friendly system that makes for easy operation.
- The new external clamp on design provides the ability to read the flow rate without touching the measurement medium. In return, this can avoid pressure loss or media contamination problems.
- The clamp on feature saves time and costs by eliminating the process of cutting into the pipeline, which also eliminates needing to shut down other equipment for long periods of time to complete the installation.
- 3” 256*128 LCD screen to display a variety of measuring information.
- Supplied with temperature sensors, the calculator integrates the Cadillac® CU-TE to provide flexibility to meet all application needs.
- Has the option to be used as an ultrasonic cooling (heat) meter/btu meter/ energy meter to realize the measurement of energy.
DIMENSIONS AND SPECS
Cadillac® CU-TE Compact Ultrasonic Meter – Specifications
Pipe Material: Metal/PVC, PP or PVDF rigid plastic pipe
Liquid Type: Water/other liquid (Single liquid medium without solid particles or impurities)
Temperature Range: 0-240oF (No Freezing on the surface)
Low Velocity cut off value: 0.33 ft/s
(Default by factory)
Display: 256*128, LCD
Response Time: 0.5-60s
Accuracy: +2%, (+1% after calibration)
Data Storage Period: 300ms
Memory for data backup: EEPROM (Data storage: over 10 years, data read/write frequency: over 1 million times)
Power and I/O connection: M12 type aviation plug
Output: 4-20mA
Communication: Modbus RS485
Options for Output: OCT (pulse output)/ One relay alarm (please contact the factory)
Power Supply: 10-24V VDC
Electric Power: <3W
Protective Circuit: Power reverse connection protection, power surge protection, output short circuit protection, output surge protection
Enclosure protection class: IP65
Environment temperature: -10 to 60oC (No Freezing)
Relative Humidity: 35 to 85% RH (No condensation)
Vibration Resistance: 10-55 Hz, doble amplitude 1.5mm, 2 hours in each XYZ axis.
Impact Resistant: 100 m/s2 16ms pulse, 1000 times each X, Y, and Z axis
Main Material: Aluminum, Industrial Plastics
Cable Length: 6.5ft (standard), PT 1000 sensor standard cable length is 30ft
*Specifications Table
Cadillac® CU-TE Compact Ultrasonic Meter – Sizing (Inches)
FLOW RANGE
Cadillac® CU-TE Compact Ultrasonic Meter – Flow Range
Pipe Size (In) Upper Flow Value (Gal/min)
0.5” 15 GPM
0,75” 25 GPM
1.00” 50 GPM
1.25” 80 GPM
1.50” 105 GPM
2.00” 155 GPM
2.50” 260 GPM
* The minimum measurable pipe size is the inner diameter >/=0.5”
*Flow Range Table
MODEL CODE
Cadillac® CU-TE Compact Ultrasonic Meter – Model Code
