In today’s energy-conscious world, precise measurement is no longer optional—it’s a necessity. Whether you’re managing a commercial building, optimizing an HVAC system, or streamlining industrial processes, having accurate flow data is crucial. That’s where ultrasonic flow meters step in.
These cutting-edge tools offer a non-invasive, highly accurate way to measure fluid flow without disrupting your system. As the head of a company that delivers reliable, maintenance-free energy metering solutions, I can confidently say ultrasonic flow meters are the future of flow measurement. This article explains how they work, why they’re superior, and how to deploy them effectively in modern systems.
What Are Ultrasonic Flow Meters?
Ultrasonic flow meters are devices that use high-frequency sound waves to measure the flow of liquid through a pipe. Unlike traditional mechanical meters, they don’t rely on moving parts or physical contact with the fluid. Instead, they measure the time it takes for ultrasonic pulses to travel upstream and downstream within the pipe.
There are two main types:
- Transit-Time Ultrasonic Meters: Best for clean liquids. They measure flow based on the difference in time between signals sent in and against the flow direction.
- Doppler Ultrasonic Meters: Designed for liquids with particulates or bubbles. They detect frequency shifts in the signal as it reflects off moving particles.
How Do Ultrasonic Flow Meters Work?

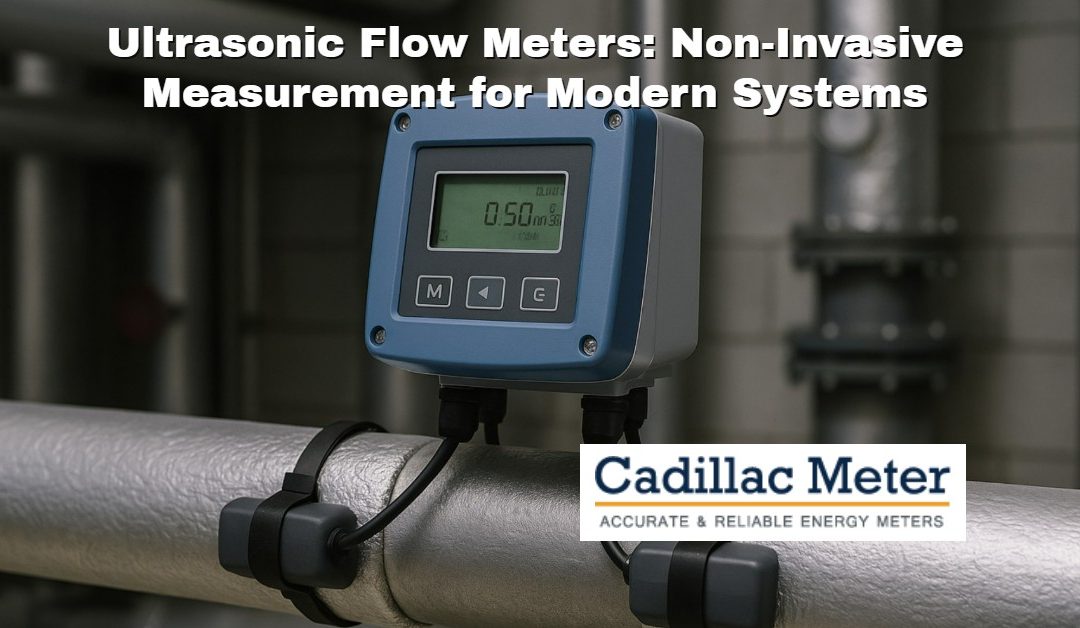

The principle behind ultrasonic flow meters is fairly simple but incredibly effective. Two transducers are attached to the outside of a pipe. These devices send and receive ultrasonic signals both upstream and downstream.
The flow rate is calculated using the difference in time it takes for the signal to move with the flow vs. against it. The faster the flow, the greater the time difference. This data is then processed and converted into a digital flow reading, displayed on the meter or sent to a building management system.
Key Advantages of Ultrasonic Flow Meters
Why are ultrasonic flow meters becoming the go-to choice for engineers, facility managers, and energy professionals?
✅ Non-Invasive Installation
The transducers clamp onto the outside of the pipe—no cutting, drilling, or system shutdown required. This means zero downtime and no contamination risk.
✅ No Moving Parts
Mechanical meters wear out. Ultrasonic flow meters don’t. With no internal components in contact with the fluid, they offer much longer service life.
✅ High Accuracy
These meters can achieve accuracy levels of ±1% or better, even at low flow rates. That’s essential when every BTU or gallon matters for billing or efficiency.
✅ Low Maintenance
Since nothing touches the fluid, there’s no buildup, corrosion, or blockages to worry about. That’s why we classify these as truly maintenance-free meters.
✅ Wide Application Range
From chilled water in HVAC systems to chemical flow in industrial plants, ultrasonic meters adapt easily to a variety of uses.
✅ Environmentally Friendly
Because installation doesn’t involve cutting pipes or releasing fluids, ultrasonic meters reduce environmental risk and waste.
Best Use Cases for Ultrasonic Flow Meters
You’ll find ultrasonic flow meters used in a wide variety of settings:
- HVAC and Building Automation: Monitor chilled and hot water usage for energy optimization.
- District Heating/Cooling Systems: Precise metering at multiple points ensures accurate billing and load balancing.
- Water Treatment Plants: Track flow without contamination risks.
- Industrial Process Control: Ideal for chemicals, slurries, and corrosive liquids.
- Energy Auditing: Temporary installations let you gather data without disturbing operations.
Installation Tips
Although ultrasonic flow meters are easy to install, proper placement is critical for accuracy. Here are a few things to keep in mind:
🔧 Select a Straight Pipe Section
Install the meter on a straight section of pipe with at least 10 pipe diameters upstream and 5 downstream. This avoids turbulence and improves measurement stability.
🔧 Pipe Material and Condition Matter
Ultrasonic signals travel best through clean, uniform pipe walls. Avoid rusted, scaled, or insulated sections unless you’re using specialized transducers.
🔧 Correct Sensor Orientation
The transducers must be aligned precisely to ensure the signal travels correctly between them. Many systems include alignment tools or guides.
🔧 Use Thermal Paste or Gel
Apply coupling gel between the sensor and the pipe to improve signal transmission. This simple step can drastically improve accuracy.
How to Read and Monitor the Data
Most ultrasonic flow meters come equipped with an LCD screen that shows:
- Instantaneous flow rate
- Total flow volume
- Temperature (if paired with sensors)
- Alarm or error messages
Many models also offer:
- Modbus, BACnet, or M-Bus for integration with building or industrial automation systems
- USB or SD card ports for data logging
- Cloud-based monitoring via mobile apps or desktop dashboards
Cost vs. Value
While the upfront cost of ultrasonic flow meters may be higher than traditional meters, the long-term value is clear. With zero maintenance, no risk of leakage, and consistent accuracy, these meters pay for themselves over time through:
💸 Reduced maintenance expenses
📉 Minimized system downtime
✅ Better decision-making with precise data
🧾 Fewer billing discrepancies and disputes
Want proof? A U.S. Department of Energy report outlines how advanced metering technologies like ultrasonic flow meters improve system efficiency and reduce operational costs.
Frequently Asked Questions
Q: Can I use ultrasonic flow meters for gases?
Most are designed for liquids, but there are specialized ultrasonic meters for gas. Always verify with the manufacturer.
Q: Do I need to shut down the system to install one?
No. That’s the beauty of clamp-on ultrasonic meters—they can be installed while the system is live.
Q: How often do they need calibration?
Typically every 2–5 years, depending on your application and meter quality. Many models feature self-diagnostics that alert you to potential drift.
Final Thoughts
Ultrasonic flow meters are more than just a smart upgrade—they’re a strategic asset. They provide unmatched accuracy, zero maintenance headaches, and easy installation, making them ideal for today’s fast-paced, efficiency-driven systems.
As a business leader who’s installed these meters in everything from skyscrapers to cleanrooms, I can confidently say they represent the gold standard of modern flow metering.
Whether you’re optimizing energy use, planning for sustainable growth, or simply tired of the limitations of mechanical meters, ultrasonic flow meters are a game-changer.
